YZPOWER CE ROHS 54.6V 4A Smart Lithium Battery Charger For 48V Lipo Li-ion Battery Electric Bike Power Tool With Cooling Fan
54.6V 4A Auto Lithium Battery Charger With Led
Please Leave Clear Words of The Input AC Plug And Output DC Plug,Like ‘AC: Number 3, DC:G. Especial ‘E’ & ‘F’,Otherwise Your Order Can’t Be Sent,Thank You!!! E1:5.5*2.5*11mm, E2:5.5*2.1*11mm ; F1:5.5*2.1*11mm, F2:5.5*2.5*11mm
1. Should be checked before using the battery charger is consistent with
the type of charger model is correct. If the model is not matched, charging may be abnormal and the battery may be seriously damaged.
2. Should be properly connected battery Do not reverse polarity! (Red + Black- or Brown- Blue + or Red + Blue -).
3. Then the AC plug in the AC outlet, then the charger starts to charge the battery,
charging status LED color light displayed by the top of the charger.
(The indicator of LED: red is charging, green is charge finished or prepare charging) If the green light is always on, check that the charging cable is firmly connected to the battery.
4.Full of voltage, first unplug the charger’s power plug, then unplug the battery plug.
1 Material: ABS + PC

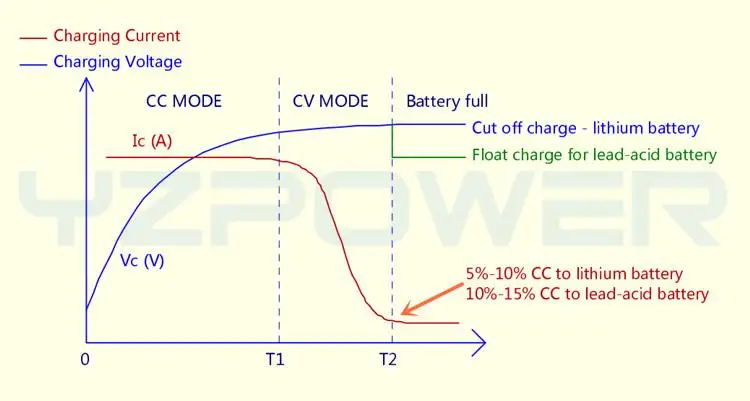

2 Charger Model: CC(constant current) CV(constant voltage)

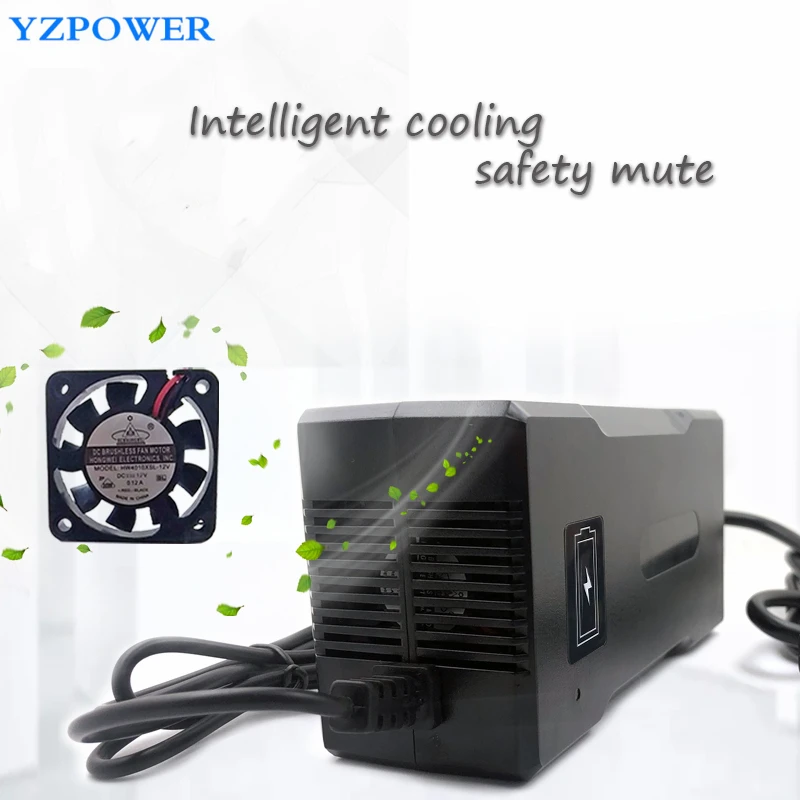

3 Cooling Way: Bulit-in Cooling Fan
4 Certificate: CE SAA FCC ROHS
5 Battery Cells: 13S Li-ion Battery
6 Operating Temperature: -20 to 60 Degree
7 Operating Humidity: 20 to 90%RH
8 Storage Temperature: -40 fo +80 Degree
Over Current Protection
Over Voltage Protection
Short Circuit Protection
Reverse Connection Protection
Dual Color LED Indicator:(Charging:Red; Fully Charged Or No Load:Green)
High Efficiency And Low Power Consumption
1.After-sales service: 12 months Warranty
2.Protection function: Over voltage / Over temperature / Over current / Short circuit
3.The indicator of LED: Red is charging, green is charge finished or prepare charging
4.Light, Small, Stable, High-Efficiency, Safe, etc.Precise limit of voltage & current, qualified fully charged and avoid over charge
Tell us about your battery type, features,
Professional sales manager for you Offer,
transport, delivery period and other issues.
Let our professional engineers recommend the right charger for you.
Products provide three-year warranty.
<8 hours response to customer complaints.
< 24 hours to propose a solution.
Professional engineers, unlimited number of
54.6V 4A thium Battery Charger
DC 54.6V(+ / – 0.3V)
4A(+ / – 0.5A)
160mm x 85mm x 56mm
Over Current Over Voltage Short Circuit Reverse Connection
Clearly Leave Words of Input And Output Plug,Otherwise Not Be Sent
