Home Accessories & Parts (No Battery) QD188-PD Dual USB QC 3.0 + Type C PD DC Output 8x 18650 Batteries DIY Power Bank Box Holder Case Fast Charger
  • Previous

    5M Active USB Extension Cable USB 3.0 Extender Male to Female Cord with Signal Booster Compatible with Oculus Rift, Xbox, PS4

    $23.99

  • Next

    24pcs High Quality Heat shrink For DIY cables

    $10.00

(No Battery) QD188-PD Dual USB QC 3.0 + Type C PD DC Output 8x 18650 Batteries DIY Power Bank Box Holder Case Fast Charger

Rated 0 out of 5
0 reviews
SKU: 4000433578915

$33.53

Category: Accessories & Parts
  • Description
  • Additional information
  • Reviews (0)

Description

(No Battery) QD188-PD Dual USB QC 3.0 + Type C PD DC Output 8x 18650 Batteries DIY Power Bank Box Holder Case Fast Charger For Mobile Phone Tablet Laptop

Features:
100% brand new and high quality.
The first time you need to install the battery, then charge activation
Need to use your own flat head 18650 batteries,can not fit 18650 Pointed battery.
Fast Charging: With a quick QC 3.0 port, it enables you to get a quick top off on your QC 3.0-enabled mobile phones.

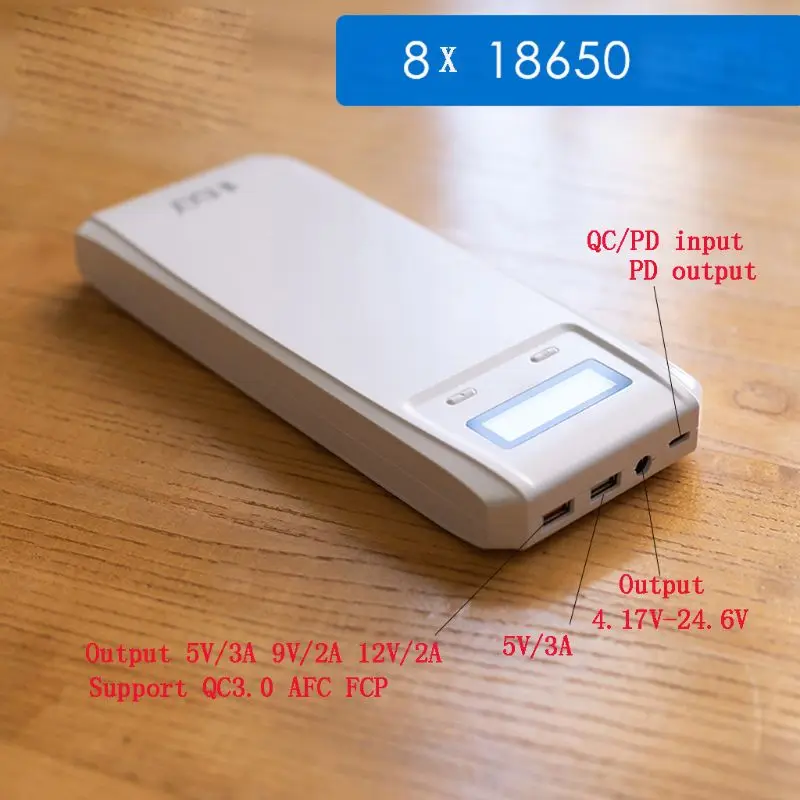

5.5×2.5mm port output is DC 4.17V-24.6V max 85W,Suitable for charge laptop,if can not fit your laptop charge port,you need to buy a adapter.
5.5×2.5mm port output,Triangular button adjustment reduces voltage,Power button to adjust the boost voltage.
The Screen shows 1: QC 3.0 USB output,2: USB 2 5V output,M: Type C output or 5.5×2.5mm port output.
2 port USB charging station power adapter charger for mobile phone,tablet,MP3,Camera,etc.
Type C port with input and output function.
Type C output is PD fast charge,suitable for iphone ipad macbook and more
USB 2 and USB 1 cannot output fast charge at the same time. When two phones are plugged into the phone at the same time, only 5V can be output at the same time. Only when using one USB interface output, QC 3.0 output is available
Digital Display Screen – Accurate display of power, keep the Battery Status at any time.
Function: power bank and rechargeable 18650 battery charger.
QD188-PD battery requirements: standard 18650 lithium battery (to use power battery), to use a new imported or domestic big-name battery (because the battery structure of the power box is 2 and 4 strings), so the battery consistency requirements are very high, The battery voltage must be the same before putting the battery into the battery. Otherwise, the battery will be uneven and various problems will occur.
Only use standard 18650 batteries;
The pointed battery is a modified size that is not completely standard for the 18650;
With the protection board battery, the size has also changed. The current protection board current is only about 2A. It is not enough. The minimum threshold for the power box is used. This battery is also used in flashlight lighting.
Because this power box is high-power; and it is a series relationship (2 and 4 strings), so the consistency requirements for the battery are relatively high; it is necessary to place 8 new A-type batteries of the same brand with the same model to work or not.
Input charging management interpretation; the optimal voltage for input to the power supply box is 18V-20V (PD protocol best 20V 2A) because the internal battery of the battery box is 2 and 4 strings (the series can increase the power output efficiently and the notebook is also the same as the high voltage charging year) Routine cost is high), unlike conventional mobile power, the battery voltage of the conventional mobile power supply is 4.2V full, so it is enough to use 5V; this is a 2 and 4 string battery arrangement, the internal battery voltage is 16.8V, then it needs to be higher than this voltage to charge it; if you charge it with 5V, then the power box should boost 5V to 19V and then charge the power box. First of all, the loss is very large, remove the loss. The remaining zero point A is barely throwing a current to recharge it (for example, the notebook is rarely useful for 5V charging), the larger the differential pressure is, the greater the loss, the low input power meter circuit is difficult to maintain normal. Full power operation status, display refresh is not timely, but the internal hardware charge management chip will automatically disconnect the current if it meets the charge saturation requirement and then the percentage will be changed to 100%. Also supports 5V to 16.8V or less convenient for everyone to compromise only compatible (if the phone now 18W quick charge will be much better than 5V).
Compatible For iPhone X 8 7 6 plus/6/5S,for ipad,for Samsung Galaxy S8 S7 S2/S3/S4, Note 2/3/4, HTC, for Sony, Xiaomi for Motorola and other cellphones or tablet
With a USB to Type C cable,you can charge the Android cellphones or tablet with Type C port.
Need to use the new 18650 battery of the same capacity and model, can not use different brands of batteries
No Battery is included, Only Power Bank Case.
Attention:
18650 batteries are not included in the package, you need to purchase separately.
Can only use the 18650 battery of which positive pole is flat top.
Specifications:
Item Type: 18650 Li-ion Battery Charger Box
LED display color: White
Material: Plastic
Color: White
Size: 22×8.8×2.5cm
Type C cable Length: 22cm
5.5×2.5mm cable Length: 66cm
Type C Input: 5V-20V or PD QC 3.0
Type C Output: 5V,9V,12V,20V Max 3A
USB 1 Output: 5V 3A
USB 2 QC 3.0 Output: 5V 3A,9V 2A,12V 1.5A

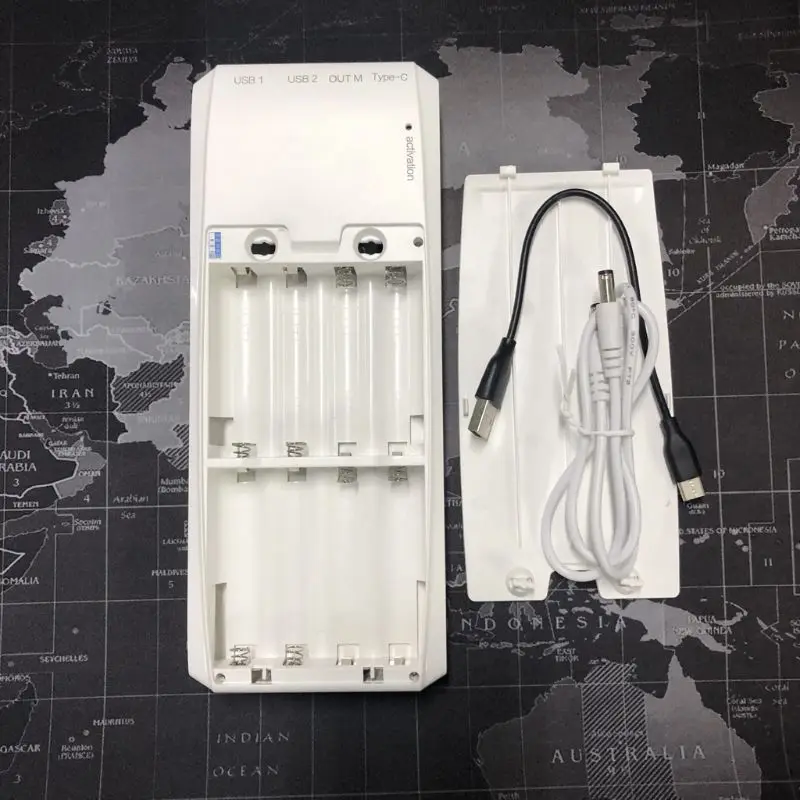

Battery: 8pcs 18650 Flat head lithium battery (Not included)
Quantity: 1 PC (other accessories demo in the picture is not included)
Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

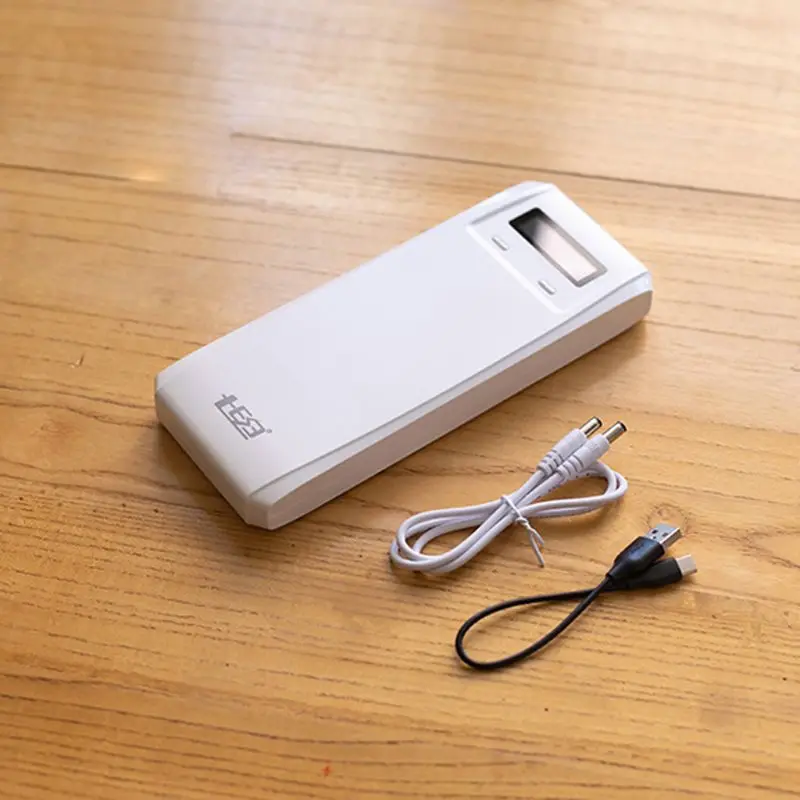

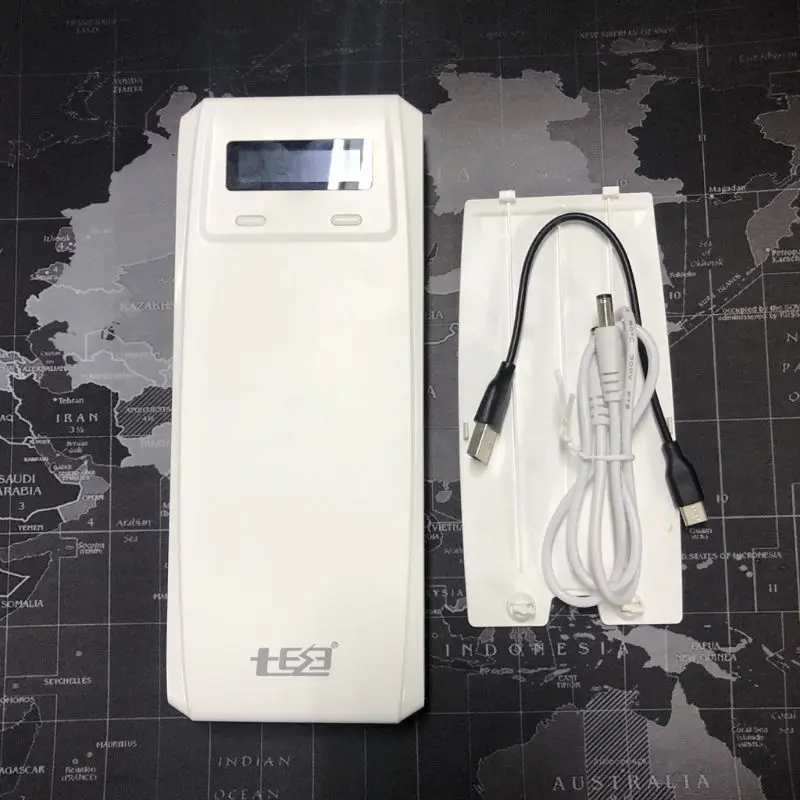

Package includes:
1 X QC 3.0 PD DIY Power Bank Box(18650 batteries are not included)
1 X Type C charging cable(color random)
1 X 5.5×2.5mm to 5.5×2.1mm cable

Additional information

Brand Name

OOTDTY

Display screen

Yes

Quick charge

Yes

Type

USB

Intelligent Charge

Yes

Package

No

Output Interface

USB Output

Use

Standard Battery
