LiitoKala Lii-500 Multifunction Charger 18650,18650 Charger 26650 Charger,Capacity test,USB 5V output,Large LCD display.
$17.09
Description

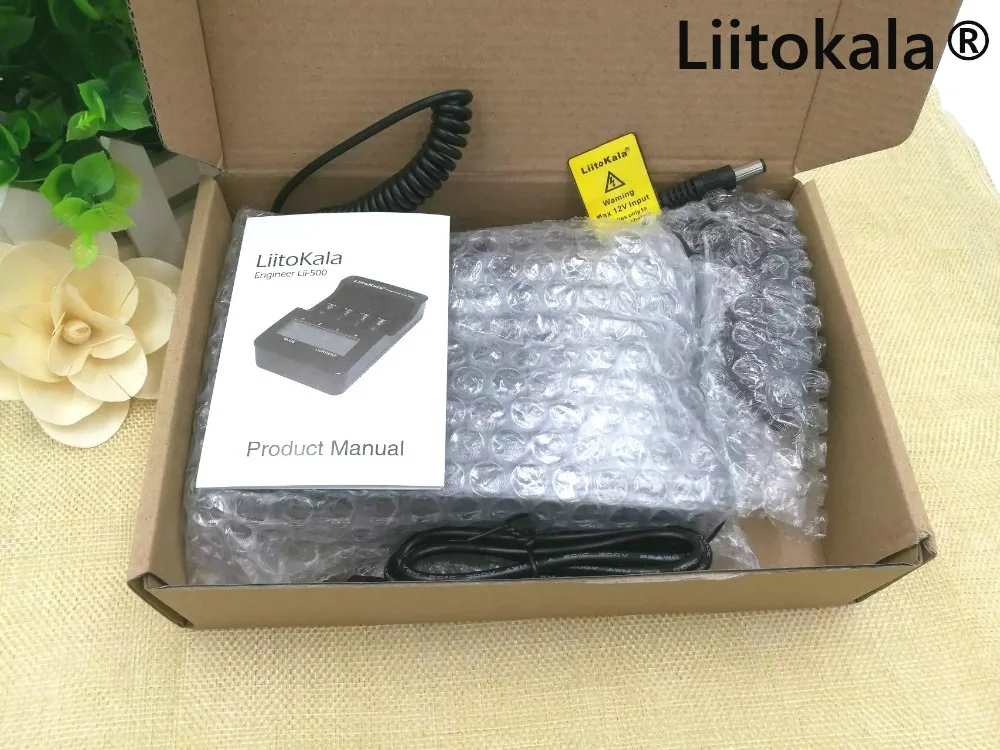

Shipping list: Liitokala lii-500 Charger 1PCS

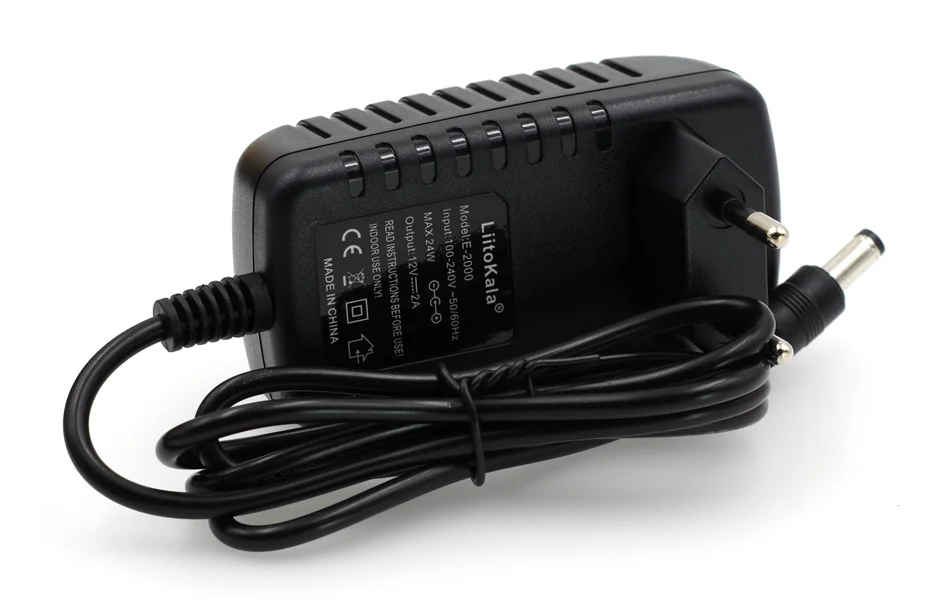

Liitokala 2A Adapter 1PCS

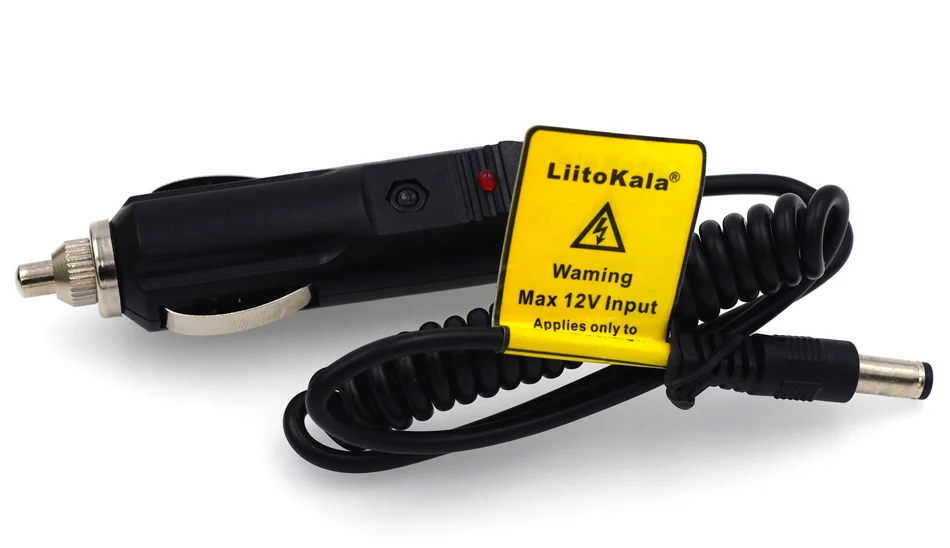

Liitokala Car Charger 1PCS
Liitokala lii-500 Manual 1PCS
(Adapter with ul flat plug and the gauge round plug, the guest to buy please leave a message to tell us you need the plug, if no message, we randomly shipment)
(Note: this is the charger, does not contain batteries.
Send this product in the original factory, as the original!)
Delivery list:
Liitokala lii-500 Charger 1 pcs.
Liitokala 2A Adapter 1 PCS.
Liitokala lii-500 Manual 1 PCS.
Shipping list:
Liitokala lii-500 charger 1PCS（
Please note that separate the charger does not contain the adapter, please carefully choose to buy what you need. thank you
）
Liitokala lii-500 charger 1PCS（
Please note that separate the charger does not contain the adapter, please carefully choose to buy what you need. thank you
）
Liitokala lii-500 Manual 1PCS
LiitoKala Lii-500 User's Guide
Thank you for using the company's products-Lii-500, which is a high-end smart charger with 4 channels of independent charging / battery capacity detection / internal battery resistance detection / anti-reverse / short circuit protection / overload protection / overheating protection / 1.65 V-2.2 V voltage can not be charging 10 features / USB 5 V output and battery activation of zero volts, and can
Automatically monitor the battery in a timely manner (charging, testing).
Lii-500 can charge various types of cylindrical lithium-ion battery, AA AAA and other cylindrical nickel-hydrogen batteries, widely used in flashlights, electrical tools, tools, digital cameras and other electronic battery products. Safe to use, portable, powerful, this is your home, to travel a good helper.
a warning
1. This charger can only charge cylindrical lithium-ion batteries and nickel-metal hydride batteries, non-lithium phosphate iron batteries;
2. Before use, please carefully read the instructions, pay attention to the recommendations of the battery charging current, do not exceed the recommended charging current;
3. do not use a different power adapter;
4. Charging Discharge Devices can be hot, be careful not to burn;
5. Stop use, turn off the power, remove the battery;
6. It can only be used in a normal room.
Product 7. This test data is only for reference, please contact professional equipment.
Secondly, the characteristics
1.4 kinds of charging current controller (ma / ma / 700mA / 1000mA);
2. Various specifications (…… 18650/26650 / AA / AAA) in the charger;

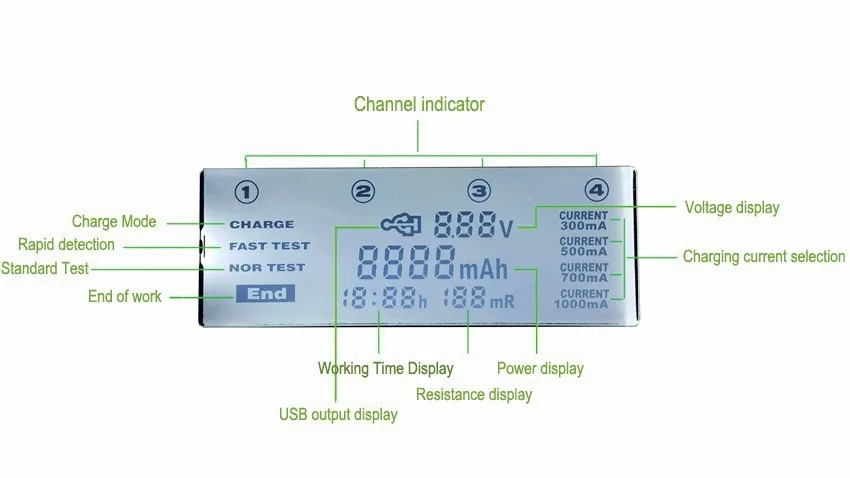

3. The charger excludes the use of a separate LCD screen, voltage (V) current (mA) time (h) capacitance (mah) resistance (mr) parameters, E view …;
4. CHARGE mode, 4 channels work independently, you can choose different charging current for charging and Hunchong lithium-ion batteries and nickel-metal hydride batteries.
5. QUICK TEST mode, 4 channels can quickly detect the battery capacity, regardless of lithium-ion batteries and nickel-hydrogen batteries, work independently of each other. Rapid detection of the battery capacity process (1, 2) in two steps
6. NO TEST mode, the battery capacity is usually detected in three stages (1 first charge, then reset 2 and 3 spare), the process of detecting battery capacity;
. 7. CHARGE and QUICK TEST / NOR TEST 3 modes can work simultaneously; Independent charge set / fast detection capability / normal detection capacity;
8. various protection functions: overload and more discharge, short circuit, temperature, 0 V voltage activation function, (-Δ V & 0 ΔV), 1.65 V-2.2 V can not be charged, intelligent recognition of bad Battery and reverse battery detection protection.

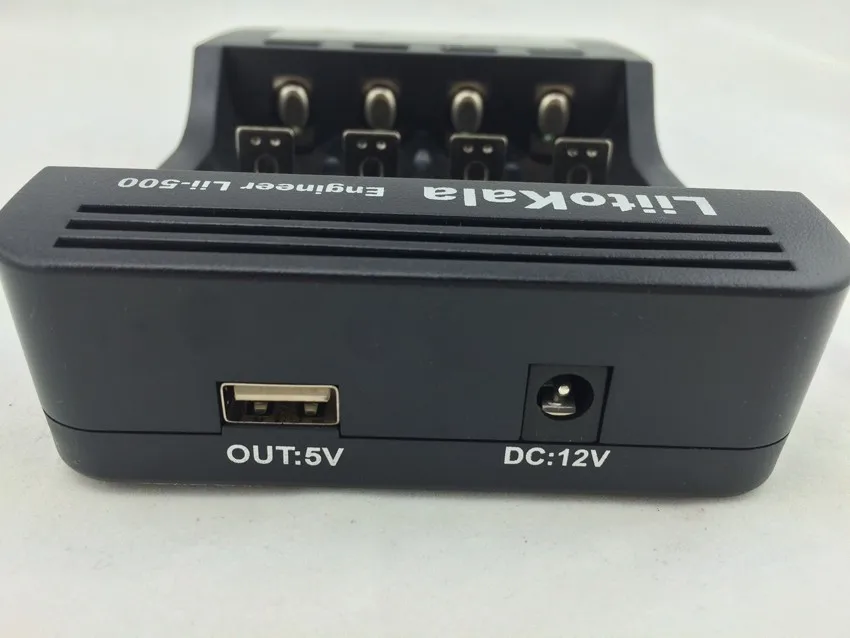

9. with standard 5 V / 1000 mA USB output: from 1 to 4 year lithium battery lithium battery USB output will be completed, the product can not be nickel metal hydride batteries with USB output.

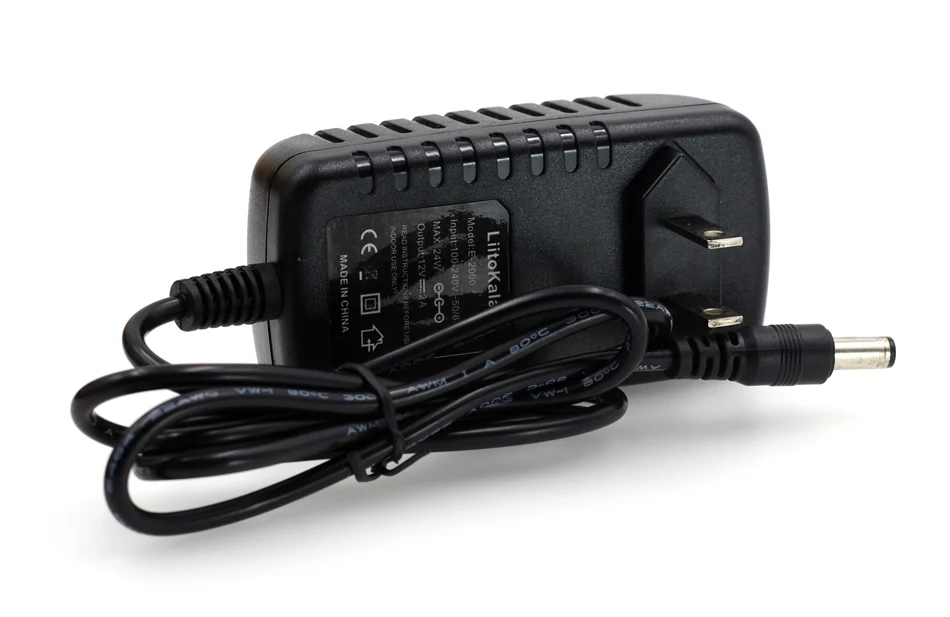

10. with special power adapter: DC input voltage: 12 V / 2A.
Thirdly, the description of the keys

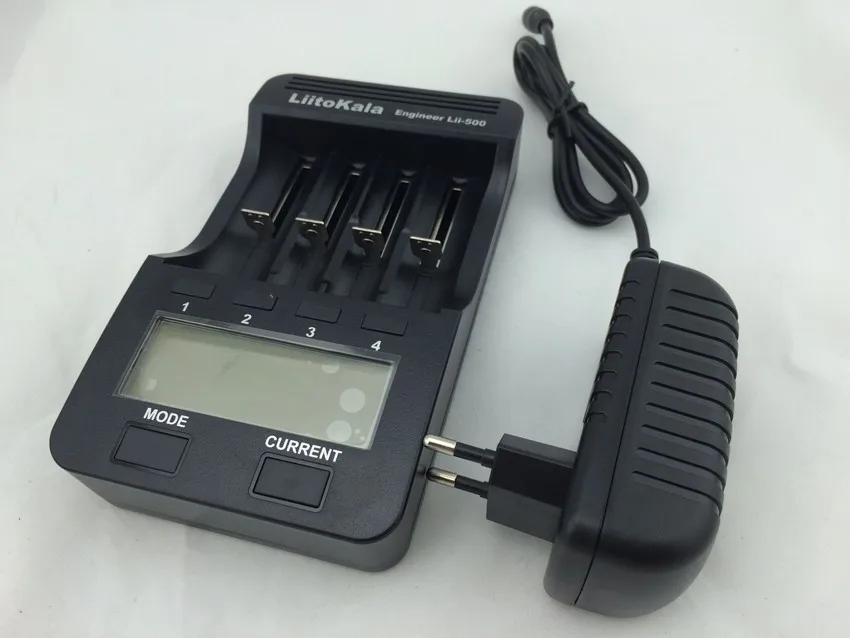

1. The charger has six buttons, the mode key (MODE), the current key selection (CURREN), and view the data of the self-selected key (1234), use simple and convenient;
2. Hold the Pressed MODE key in any case and for 3 seconds to change the CHARG (for an additional fee) mode or QUICK TEST, NO TEST (test capacity) mode, then press again, the corresponding function keys can be changed within 8 seconds , On the current, independent, Hunchong, capacity test, the selected function after 8 seconds in working order, in working order, you can click on (1234) to view the current (mA) / capacity (mache) / voltage (V) / time (h ) / Resistance (Mr) reference data.
Fourth, the mode Description:
CHARGING (charging mode)
1. when turning on the power of the charger, the charger is all instantaneous full brightness LCD screen if the battery does not fit in the Null display, if this bad battery will also be displayed in Null;
2. Insert the battery charger, the charger for three seconds or so to measure the internal resistance of the battery, after which the system automatically switches to charging mode (CHARGING), the charger automatically defaults to the charging current of “500mA, in 8 seconds in the current Select the key (CURREN) select 300mA, 500mA, 700mA, 1000mA current charging system lock the current that you select will be charged for eight seconds, if within 8 seconds, do not set, then the system automatically defaults to 500mA charging current, current and Other functions at this time will not be changed, if you need to change, you need to change the mode of the button with the choices;
3. into charging mode (CHARGING), for 8 seconds to change any of the independent charging or other current selection, as well as various Hunchong batteries. Make simple, 8 seconds press the corresponding button of the battery 1234, press the mode button to change the mode, press the current key to change the current, independent, Hunchong, power detection function, selected after 8 seconds in working order, attention in accordance with the battery capacity to Choose the size of the charge current, if not fast charge, we recommend charging 500mA, this is the most secure;
4. charging mode, by pressing the buttons you can switch to view 1234 charging capacity (mast) / charging time (h) / internal battery resistance (mr) / charging current (mA), voltage (V) 5 kinds of units, The battery is fully charged after the show (end of charge);
II. Power detection mode (QUICK TEST, TEST) two kinds
A) QUICK TEST (fast test mode capacity)
1. when enabled
Services:
1, we only support the Alipay payment.
2, your address must match the address with your order.
3 Product images will make some deal, and there are variations in each display shows the color, so the picture is for reference only.
4. Our delivery time is two to three days sent, if you have not found the next day to buy a product is delivered, please do not worry, we will give you send over three days.
5. If within 30 days you do not receive the goods, please contact us. We will follow the goods and give you an answer as soon as possible.
6. If within 90 days you do not receive the goods, we will refund your money.
7. When you receive the product, please give us a confirmation and give us a good evaluation.
8 Because your development of our business is very important, and we sincerely hope that you have positive feedback, you need only one minute of time, but one minute will give us very important.
9 If there are any negative issues during the purchase, please contact us and we will work together to solve.
10, your satisfaction is our goal, I wish you a happy life!
Additional information
| Use | Standard Battery |
|---|---|
| Package | Yes |
| Type | Electric |
| Intelligent Charge | Yes |
| Model Number | Lii-500 |
| Display screen | Yes |
| Battery Number | 4 |
| Brand Name | liitokala |
| Quick charge | Yes |
